Heavy-Duty Hydraulic Performance
Designed for high tonnage applications, the hydraulic system ensures powerful and stable bending for thick materials.
Global Machines, Reliable Service.
Global Machines, Reliable Service.
Watch our product in action, and product images for better understanding
Robust hydraulic bending system for heavy-duty applications
High bending force for thick and large sheet processing
CNC-controlled precision bending
Stable and durable machine structure
Wide working length and tonnage options
User-friendly CNC interface for easy programming
Consistent repeatability and accuracy
Suitable for continuous industrial operations
Low vibration and stable performance
Easy maintenance and long service life
Heavy sheet metal fabrication
Industrial equipment manufacturing
Structural steel components
Construction and infrastructure fabrication
Electrical panels and enclosures
Agricultural machinery
General fabrication workshops Overview

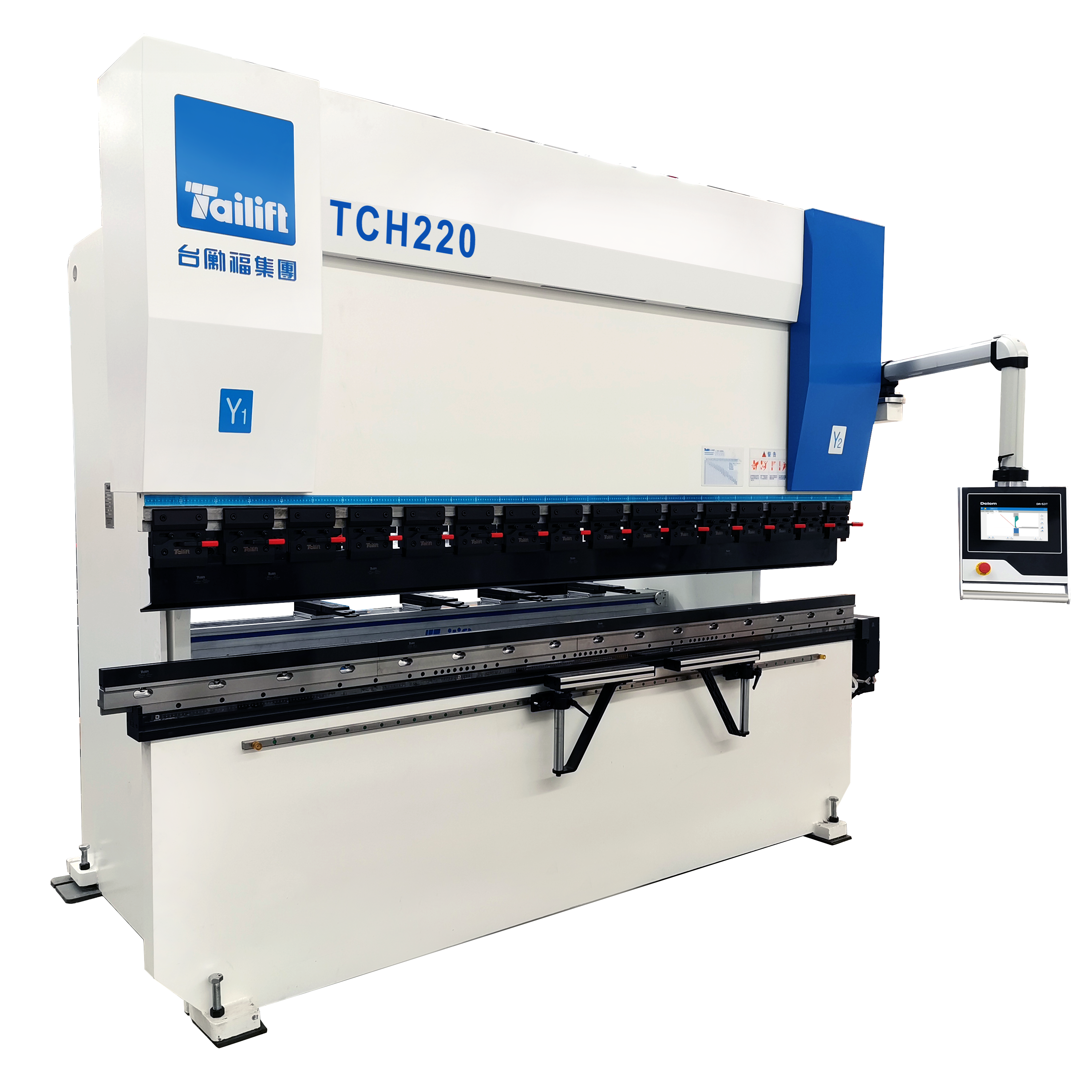

The TCH Series CNC Hydraulic Bending Machine is designed for heavy-duty industrial bending applications where power, precision, and reliability are essential. Its advanced hydraulic system delivers consistent bending force, making it suitable for thick sheet metal and large fabrication components.
With CNC-controlled operation and a rigid machine structure, the TCH Series ensures accurate bending performance, smooth operation, and dependable productivity across a wide range of industrial fabrication tasks.
Designed for high tonnage applications, the hydraulic system ensures powerful and stable bending for thick materials.
Advanced CNC system enables accurate angle control, repeatability, and efficient production workflows.
Reinforced frame construction ensures long-term stability and minimal deformation under load.
Simple interface allows quick setup, programming, and operation for operators of all skill levels.
Engineered for reliability with minimal downtime and easy servicing.
| Specification | Option 1 | Option 2 | Option 3 | Option 4 | Option 5 |
|---|---|---|---|---|---|
| Model | TCH50 (1.6M) | TCH100 (3.2M) | TCH160 (4.1M) | TCH320 (6.1M) | TCH500 (6.1M) |
| Bending Force (kN) | 500 | 1000 | 1600 | 3200 | 5000 |
| Bending Length A (mm) | 1600 | 3200 | 4100 | 6100 | 6100 |
| Distance Between Uprights B (mm) | 1230 | 2700 | 3300 | 5400 | 5400 |
| Max Open Height E (mm) | 495 | 545 | 545 | 600 | 620 |
| Throat Depth C (mm) | 260 | 320 | 320 | 400 | 500 |
| Backgauge X Range (mm) | 750 | 850 | 850 | 850 | 850 |
| Backgauge X Max Speed (mm/s) | 320 | 320 | 320 | 250 | 200 |
| Backgauge R Range (mm) | 150 | 200 | 200 | 200 | 200 |
| Backgauge R Max Speed (mm/s) | 320 | 250 | 250 | 200 | 150 |
| X/R Position Accuracy (mm) | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 |
| X/R Reposition Accuracy (mm) | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 |
| Ram Rapid Down (mm/s) | 200 | 200 | 160 | 130 | 100 |
| Ram Working Speed (mm/s) | 1β15 | 1β15 | 1β15 | 1β12 | 1β10 |
| Ram Return Speed (mm/s) | 200 | 160 | 140 | 110 | 100 |
| Oil Tank Capacity (L) | 28 | 280 | 280 | 380 | 380 |
Everything you need to know about the A Series Fiber Laser Cutting Machine
The TCH Series is used for high performance sheet metal bending in industries such as heavy fabrication, structural steel, electrical panels, and industrial equipment manufacturing.
The machine features a robust hydraulic system and a reinforced frame structure, allowing it to handle high tonnage bending and thick sheet metal with consistent performance.
The TCH Series offers a wide bending force range from 500 kN to 5000 kN, making it suitable for both medium and heavy duty bending applications.
Depending on the model, the machine supports bending lengths from 1600 mm up to 6100 mm, enabling processing of both small and large sheet metal components.
The machine is ideal for bending mild steel, stainless steel, and other sheet metals used in industrial fabrication and structural applications.
The CNC control system ensures precise angle control, repeatability, and automated operation, allowing consistent bending results across batch production.
Yes, it features a user friendly CNC interface with simple programming, making it easy for operators to set up and run bending operations efficiently.
Yes, the machine is designed for continuous industrial use with stable hydraulic performance, low vibration, and reliable operation over long production cycles.
The rigid frame construction, high quality hydraulic components, and low maintenance design ensure long service life and minimal downtime.
Yes, with its durability, low maintenance, consistent accuracy, and ability to handle heavy duty applications, the TCH Series offers strong return on investment.
