All-Electric Drive System
The TCE Series eliminates the need for hydraulic oil, delivering clean, efficient, and environmentally friendly bending operations with reduced running costs.
Global Machines, Reliable Service.
Global Machines, Reliable Service.
Watch our product in action, and product images for better understanding

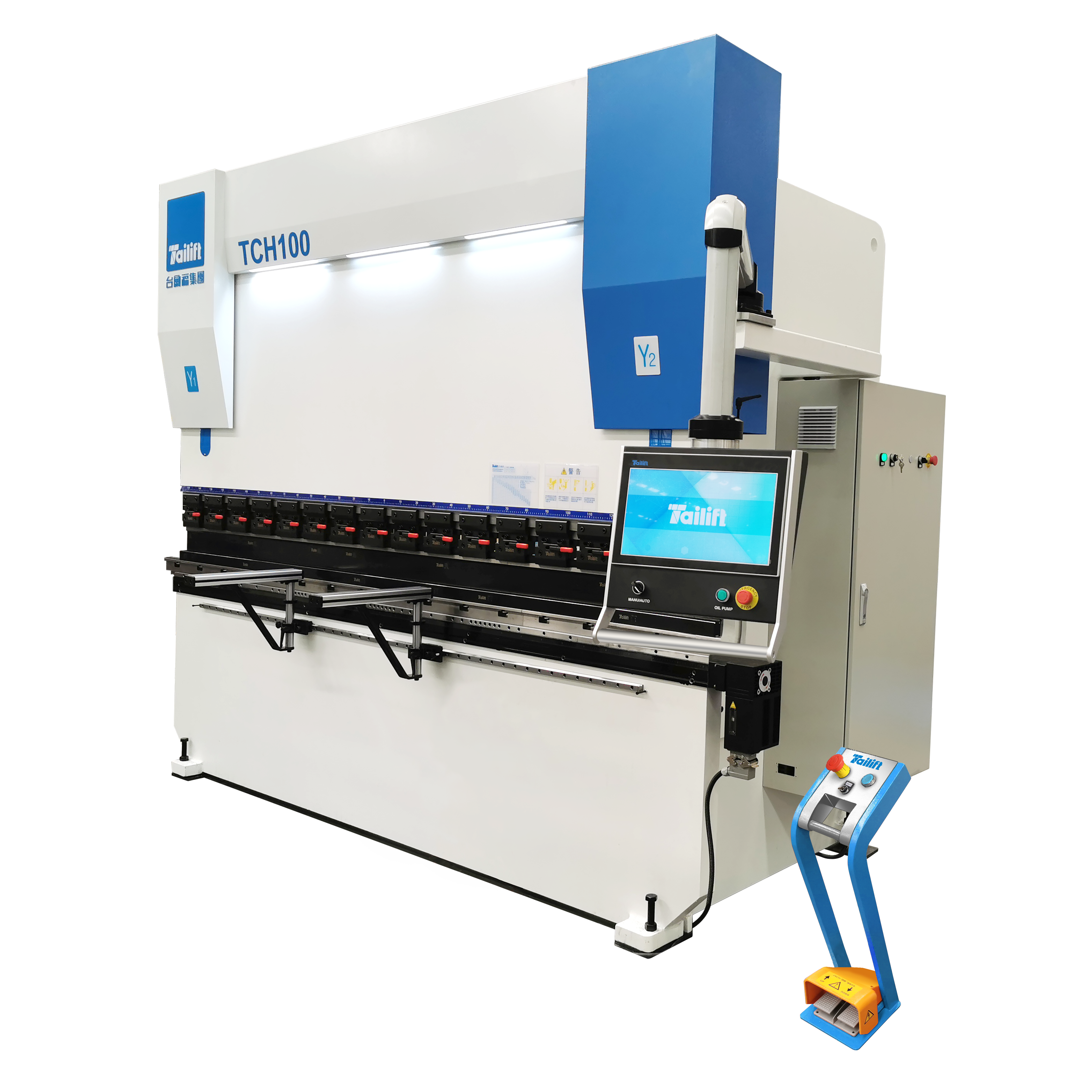

Fully electric CNC press brake (oil-free operation)
High-speed precision bending for small and medium parts
Low energy consumption with eco-friendly performance
Compact machine design for flexible factory integration
Advanced CNC control with touchscreen interface
Adjustable working table height for operator convenience
Reduced maintenance due to absence of hydraulic system
High positioning accuracy and repeatability
Quiet operation suitable for modern production environments
Precision sheet metal fabrication
Electrical cabinets and enclosures
Electronics and light industrial components
Stainless steel and aluminum bending
HVAC and duct manufacturing
Small to medium batch production
Custom fabrication workshops
Energy-efficient manufacturing facilities The TCE Series eliminates the need for hydraulic oil, delivering clean, efficient, and environmentally friendly bending operations with reduced running costs.
Designed for rapid and accurate bending, the machine ensures excellent repeatability, making it ideal for small and medium-sized components.
Features a high-resolution touchscreen interface with intuitive controls, USB connectivity, and a stable Linux-based system for seamless operation and automation integration.
The space-saving structure allows easy integration into existing production lines, while the adjustable working height improves operator comfort and productivity.
With fewer moving parts and no hydraulic system, the TCE Series significantly reduces maintenance requirements and downtime.
| Specification | Option 1 | Option 2 | Option 3 | Option 4 |
|---|---|---|---|---|
| Model | TCE50 (1.6M) | TCE70 (2M) | TCE70 (2.5M) | TCE100 (2.5M) |
| Bending Force (kN) | 500 | 700 | 700 | 1000 |
| Bending Length A (mm) | 1600 | 2000 | 2500 | 2500 |
| Distance Between Uprights B (mm) | 1230 | 1700 | 2100 | 2100 |
| Max Open Height E (mm) | 485 | 485 | 485 | 485 |
| Throat Depth C (mm) | 260 | 320 | 320 | 320 |
| Backgauge X Range (mm) | 750 | 750 | 750 | 850 |
| Backgauge X Max Speed (mm/s) | 320 | 320 | 320 | 320 |
| Backgauge R Range (mm) | 150 | 150 | 150 | 200 |
| Backgauge R Max Speed (mm/s) | 320 | 250 | 250 | 250 |
| X/R Position Accuracy (mm) | 0.025 | 0.025 | 0.025 | 0.025 |
| X/R Reposition Accuracy (mm) | 0.025 | 0.025 | 0.025 | 0.025 |
| Ram Rapid Down (mm/s) | 200 | 200 | 200 | 200 |
| Ram Working Speed (mm/s) | 200 | 200 | 200 | 200 |
| Ram Return Speed (mm/s) | 1β30 | 1β30 | 1β30 | 1β30 |
| Oil Tank Capacity (L) | 200 | 200 | 200 | 200 |
Everything you need to know about the A Series Fiber Laser Cutting Machine
The TCE Series is used for high precision sheet metal bending in applications such as electrical enclosures, electronics, HVAC components, and light fabrication work.
The TCE Series is fully electric and oil free, offering cleaner operation, lower energy consumption, reduced maintenance, and quieter performance compared to traditional hydraulic press brakes.
The TCE Series provides bending force from 500 kN to 1000 kN, making it ideal for small to medium thickness sheet metal bending applications.
Depending on the model, the machine supports bending lengths from 1600 mm to 2500 mm, suitable for compact and precision fabrication requirements.
The machine is suitable for bending mild steel, stainless steel, and aluminum, especially for precision components and light to medium duty applications.
Selection depends on material type and thickness. For most applications:
Choosing the right tonnage ensures accurate bending and longer machine life.
The electric servo drive provides fast response, high positioning accuracy, and consistent repeatability, resulting in precise bending and faster cycle times.
Yes, the all electric system consumes significantly less power compared to hydraulic machines, making it an eco friendly and cost efficient solution.
Yes, the machine features a user friendly touchscreen CNC controller and requires minimal maintenance due to the absence of hydraulic oil and fewer moving parts.
Yes, with its CNC automation, compact design, low noise operation, and energy efficiency, the TCE Series is ideal for Industry 4.0 and modern manufacturing environments.
