High-Precision Bending System
The TCD Series utilizes synchronized Y1 and Y2 axes to ensure parallelism and accuracy during bending, delivering consistent results even for complex geometries.
Global Machines, Reliable Service.
Global Machines, Reliable Service.
Watch our product in action, and product images for better understanding

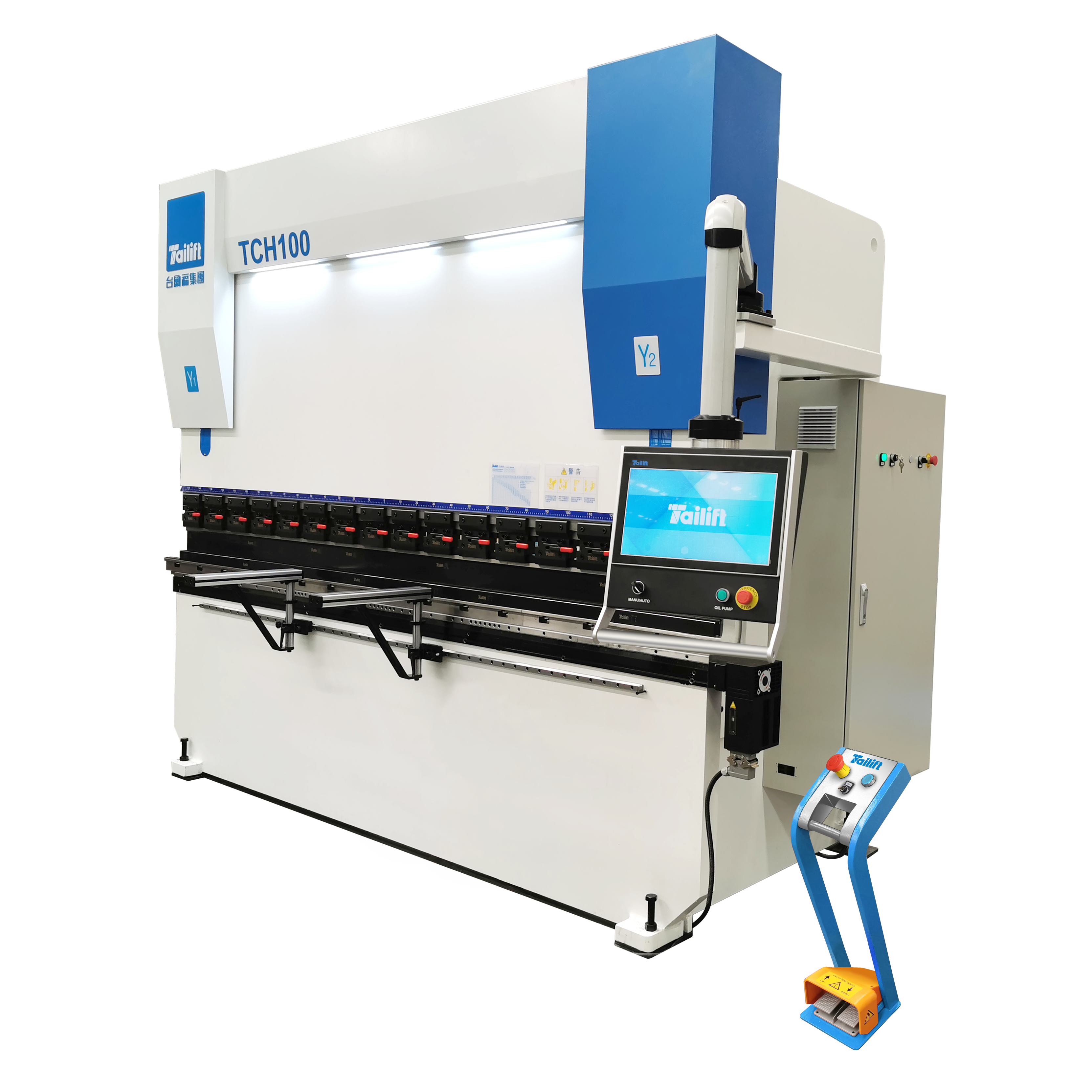

Advanced CNC press brake for precision sheet metal bending

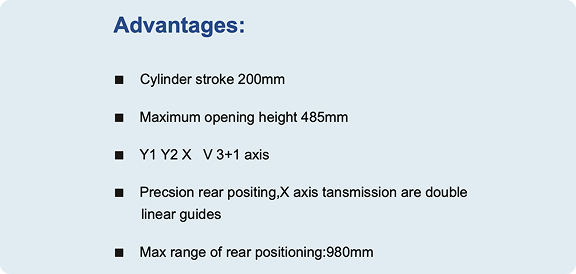

Y1, Y2, X, and V-axis (V3+1 axis) synchronized control system
200 mm cylinder stroke for deep and complex bending operations
Maximum opening height up to 485 mm for versatile tooling
High-speed approach up to 330 mm/s for improved productivity
Dual linear guide system for enhanced X-axis transmission accuracy
Precision rear positioning system with up to 980 mm range
Stable dual-rail frame structure for improved rigidity and consistency
User-friendly touchscreen CNC controller with real-time monitoring
Designed for continuous industrial operation with high reliability
Sheet metal fabrication and bending workshops
Electrical enclosures and cabinet manufacturing
Automotive components and parts production
HVAC ducting and fabrication
Stainless steel and aluminum product manufacturing
Industrial equipment and machinery production
Architectural metalwork and custom fabrication
General-purpose precision bending operations The TCD Series utilizes synchronized Y1 and Y2 axes to ensure parallelism and accuracy during bending, delivering consistent results even for complex geometries.
Equipped with an intuitive touchscreen interface, the system enables easy programming, real-time monitoring, and efficient operation, reducing setup time and operator effort.

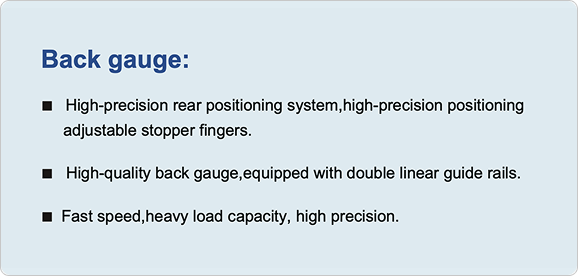

The high-precision rear positioning system features adjustable stopper fingers and double linear guide rails, ensuring accurate positioning and repeatability across all jobs.
With an approach speed of up to 330 mm/s, the machine significantly increases production efficiency while maintaining precision and safety.
The reinforced frame and dual-rail structure provide exceptional rigidity, minimizing deflection and ensuring long-term operational stability.
Precision stop fingers improve positioning accuracy and support complex bending tasks with consistent repeatability.
| Specification | Option 1 | Option 2 | Option 3 | Option 4 | Option 5 |
|---|---|---|---|---|---|
| Model | TCD100 (2.5M) | TCD160 (3.2M) | TCD160 (6.1M) | TCD200 (6.1M) | TCD250 (6.1M) |
| Bending Force (kN) | 1000 | 1600 | 1600 | 2000 | 2500 |
| Bending Length A (mm) | 2500 | 3200 | 6100 | 6100 | 6100 |
| Distance Between Uprights B (mm) | 2100 | 2700 | 5400 | 5400 | 5400 |
| Max Open Height E (mm) | 485 | 485 | 485 | 485 | 495 |
| Throat Depth C (mm) | 320 | 400 | 400 | 400 | 400 |
| Backgauge X Range (mm) | 760 | 760 | 760 | 760 | 760 |
| Backgauge X Max Speed (mm/s) | 250 | 250 | 200 | 200 | 150 |
| Backgauge R Range (mm) | 200 | 200 | 200 | 200 | 200 |
| Backgauge R Max Speed (mm/s) | 250 | 250 | 200 | 150 | 150 |
| X/R Position Accuracy (mm) | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 |
| X/R Reposition Accuracy (mm) | 0.025 | 0.025 | 0.025 | 0.025 | 0.025 |
| Ram Rapid Down (mm/s) | 300 | 200 | 150 | 140 | 130 |
| Ram Working Speed (mm/s) | 1β15 | 1β10 | 1β10 | 1β10 | 1β10 |
| Ram Return Speed (mm/s) | 200 | 160 | 130 | 140 | 130 |
| Oil Tank Capacity (L) | 280 | 280 | 380 | 380 | 380 |
Everything you need to know about the A Series Fiber Laser Cutting Machine
The TCD Series CNC press brake is used for high precision sheet metal bending in industries such as electrical enclosures, automotive components, HVAC fabrication, and general sheet metal manufacturing.
The TCD Series features advanced multi axis control with Y1, Y2, X, and V axis synchronization, delivering higher bending accuracy, better repeatability, and improved efficiency compared to conventional machines.
The TCD Series provides bending force options from 1000 kN to 2500 kN, making it suitable for medium to heavy duty sheet metal bending applications.
Depending on the model, the machine supports bending lengths from 2500 mm up to 6100 mm, allowing both standard and large sheet processing.
The machine is suitable for bending mild steel, stainless steel, and aluminum sheets used in precision fabrication and industrial applications.
The synchronized Y1 and Y2 axes ensure parallel movement of the ram, while X and V axis control enhances positioning and crowning accuracy, resulting in precise and consistent bending results.
With an approach speed of up to 330 mm per second, the machine reduces cycle time and increases productivity without compromising bending accuracy.
The high precision back gauge system with double linear guide rails and up to 980 mm positioning range ensures accurate sheet positioning and repeatability for complex bending operations.
Yes, the machine is designed for continuous operation with a rigid frame structure, stable hydraulic system, and reliable CNC control for long production cycles.
Yes, with its high precision, reduced setup time, faster production speed, and minimal rework, the TCD Series offers excellent return on investment for fabrication units.
