Three-Chuck Full Stroke Cutting System
Enables continuous clamping and full-length cutting of tubes and beams, ensuring maximum utilization and minimal scrap.

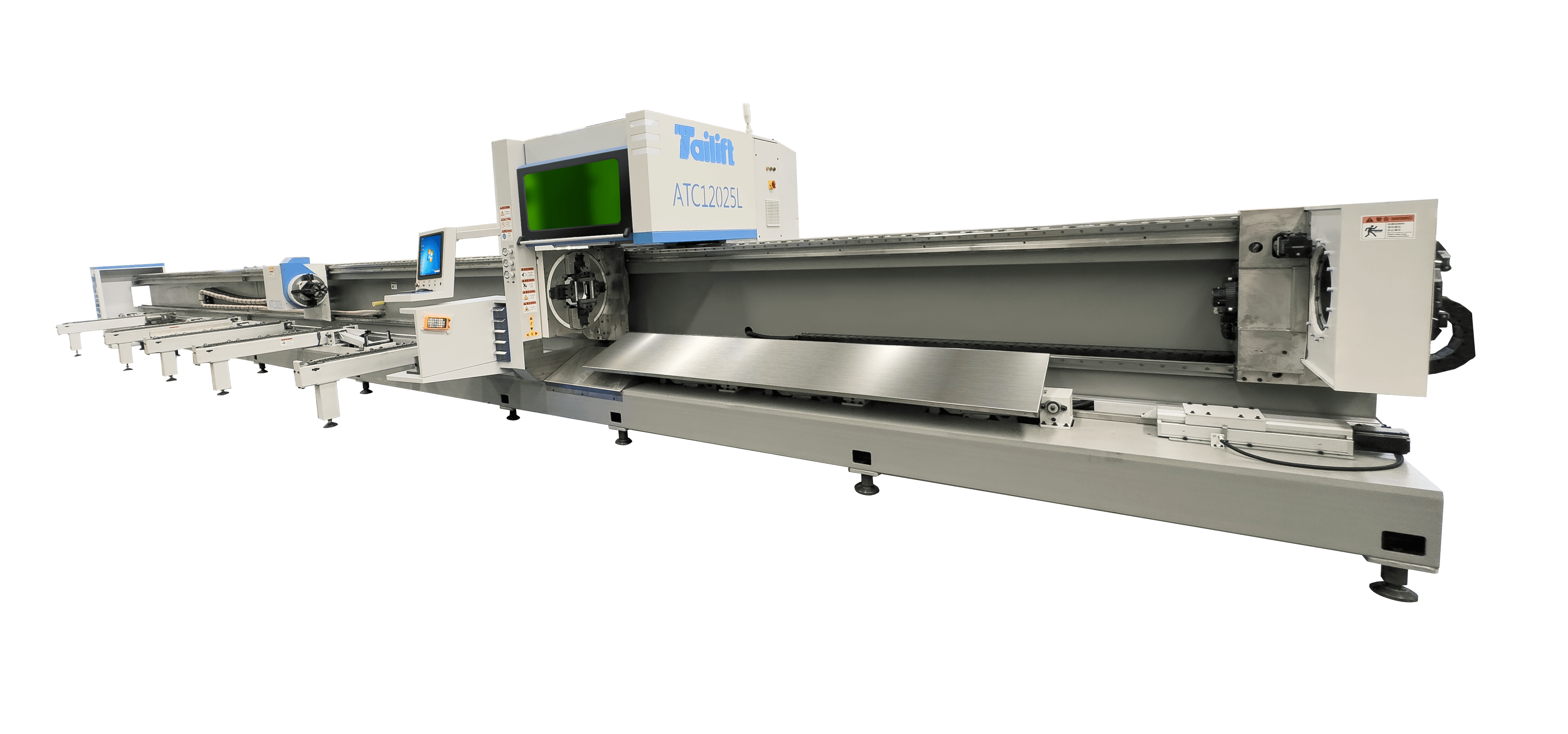

Tube Laser Cutting Machine
ATO SERIES FIBER LASER
Enclosed 12MTR Tube laser
Three chuck, Zero tail & Beam Cutting
Three chuck, Zero tail & Beam Cutting
High-efficiency fiber laser cutting solution designed for tube, pipe, and structural beam processing including C Channel, H Beam, and I Beam, with 12 meter infeed and 12 meter outfeed capability for long-length industrial applications.

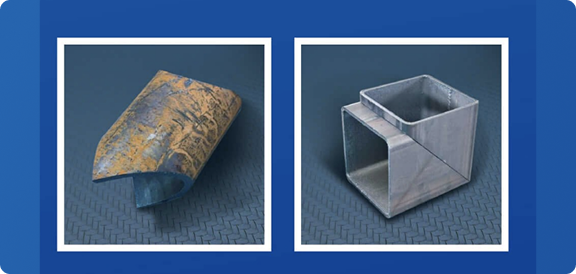

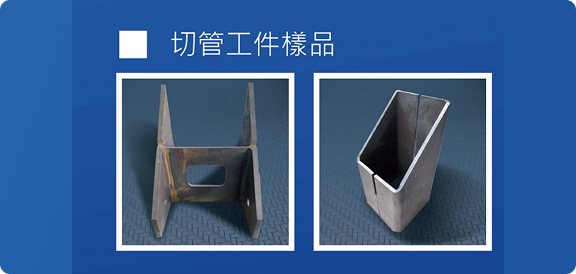

Product Showcase
Watch our product in action, and product images for better understanding
-
Heavy-duty three chuck cutting system for full-length processing -
Supports tube and structural beam cutting (C, H, I profiles)
-
Processes long workpieces with 12 meter infeed and 12 meter outfeed
-
Large diameter tube and beam processing capability
-
Near zero tail material utilization
-
High speed gear driven chuck rotation
-
Dual jaw and roller support for long tubes and beams
-
Advanced tube and beam nesting software integration
-
High precision and stable cutting performance
-
Optimized for heavy industrial fabrication applications
Key Features
-
Structural steel fabrication including C Channel, H Beam, and I Beam -
Infrastructure and construction industries
-
Oil and gas pipeline and structural components
-
Long-length tube and beam processing up to 12 meters
-
Industrial and heavy engineering fabrication
-
Automotive and heavy equipment manufacturing
Key Applications
Overview

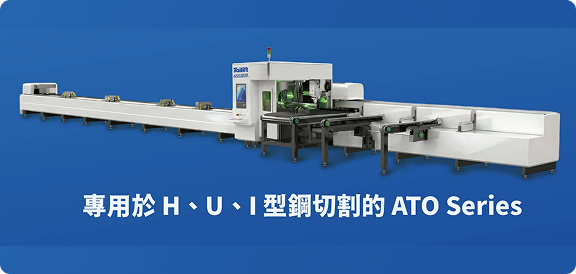

The ATO Series Fiber Laser Tube & Beam Cutting Machine is engineered for heavy-duty processing with a three-chuck full-length cutting system.
It efficiently handles round tubes, square pipes, rectangular sections, and structural profiles such as C Channels, H Beams, and I Beams with high precision.
With dedicated 12-meter infeed and 12-meter outfeed capability, the machine is ideal for long workpieces used in infrastructure, construction, and industrial fabrication.
It ensures maximum material utilization, minimal scrap generation, high productivity, and consistent cutting performance for demanding industrial applications.
It efficiently handles round tubes, square pipes, rectangular sections, and structural profiles such as C Channels, H Beams, and I Beams with high precision.
With dedicated 12-meter infeed and 12-meter outfeed capability, the machine is ideal for long workpieces used in infrastructure, construction, and industrial fabrication.
It ensures maximum material utilization, minimal scrap generation, high productivity, and consistent cutting performance for demanding industrial applications.
Technical Specifications
| Specification | Option 1 | Option 2 | Option 3 |
|---|---|---|---|
| Model | ATO12030 | ATO12040 | ATO12070 |
| Laser Power | Up to 20KW | Up to 20KW | Up to 20KW |
| Positioning Accuracy | ≤0.05 mm / 1000 mm | Same | Same |
| Repositioning Accuracy | ≤0.05 mm / 1000 mm | Same | Same |
| Round Tube Capacity | Φ30 – Φ300 mm | Φ30 – Φ400 mm | Φ30 – Φ650 mm |
| Square Tube Capacity | 30 – 250 mm | 30 – 350 mm | 30 – 650 mm |
| Rectangular Tube Capacity | 30 – 250 mm | 30 – 350 mm | 30 – 650 mm |
| H / I / C Beam Capacity | 60 – 250 mm | 60 – 350 mm | 60 – 650 mm |
| Maximum Tube Length | ≤12200 mm | ≤12200 mm | ≤12200 mm |
| Chuck Type | Three Pneumatic Chucks | Same | Same |
| Tail Length (Scrap) | Near Zero | Near Zero | Near Zero |
| Maximum Axis Movement Speed | Up to 50 m/min | Same | Same |
| Chuck Rotation Speed | Up to 30 r/min | Same | Same |
Thickness & Power Consumption
⚠️ No Data Found
Technology Highlights
⚠️ No Data Found
Product Description
Long-Length Processing Capability
Designed for up to 12 meter tube and beam processing, with dedicated 12 meter infeed and 12 meter outfeed for seamless handling of long workpieces.
Advanced Chuck Design for Tubes & Beams
Fully enclosed pneumatic chucks with dual-row jaws provide stable and precise clamping for pipes and structural profiles including C, H, and I beams.
High-Speed Cutting Performance
Gear-driven chuck rotation ensures faster cutting speeds with consistent precision across both tube and beam applications.
Intelligent Tube & Beam Processing System
Advanced system with nesting software optimizes material usage and ensures smooth, efficient cutting for both tube and structural profiles.
Near-Zero Tail Cutting Advantage
Three-chuck system minimizes tailing across tube and beam cutting, improving material efficiency and reducing waste.
Heavy-Duty Motion & Servo System
High-performance servo system ensures stable, accurate, and high-speed cutting performance for large and heavy profiles.
Frequently Asked Questions
Everything you need to know about the ATO SERIES FIBER LASER
1. What is the ATO Series laser cutting machine used for?
The ATO Series is a heavy-duty fiber laser cutting machine designed for tube, pipe, and structural beam processing, including C Channel, H Beam, and I Beam applications in infrastructure, construction, and heavy engineering industries.
2. What is the maximum processing length of the ATO Series machine?
The ATO Series supports up to 12 meter processing length, with 12 meter infeed and 12 meter outfeed, enabling seamless handling of long tubes and structural beams.
3. Can the ATO Series cut structural beams like H Beam and I Beam?
Yes, the machine is specifically designed to process C Channels, H Beams, and I Beams, along with round, square, and rectangular tubes, making it a complete solution for structural fabrication.
4. What is the maximum tube and beam size capacity in the ATO Series?
Depending on the model:
- Round tubes up to Φ650 mm
- Square and rectangular tubes up to 650 mm
- H, I, and C beams up to 650 mm
This makes it suitable for large-scale heavy fabrication.
5. What laser power is available in the ATO Series?
The ATO Series supports laser power up to 20 kW, enabling high-speed cutting of thick materials and heavy structural sections.
6. How does the three chuck system improve performance?
The three pneumatic chuck system allows continuous clamping across the entire length, ensuring full-length cutting, higher precision, and better stability, especially for long and heavy workpieces.
7. Does the ATO Series support zero tail cutting?
Yes, the machine offers near zero tailing, significantly reducing scrap and maximizing material utilization, especially important for expensive structural materials.
8. Is the ATO Series suitable for long and heavy industrial applications?
Yes, it is specifically engineered for long-length and heavy-duty applications, with strong mechanical structure, dual support system, and stable cutting performance for large profiles.
9. What makes the ATO Series ideal for infrastructure and construction industries?
Its ability to process 12 meter long beams, large diameters, structural profiles, and heavy materials makes it ideal for infrastructure projects, steel fabrication, and construction components.
10. Why choose ATO Series over standard tube laser cutting machines?
The ATO Series offers beam cutting capability, higher power up to 20 kW, 12 meter processing, larger profile handling, and near zero scrap, making it the ideal upgrade for manufacturers working with large structural components.
