High speed tube cutting performance
Precision pneumatic chuck system
Advanced bus control technology
Stable long pipe support system
Optimized for small and medium tubes
Fast response cutting system
Reliable high accuracy processing
Tube and pipe fabrication
Furniture and modular structure manufacturing
Automotive components and chassis parts
Fitness equipment manufacturing
Agricultural equipment fabrication
Electrical conduit and pipe processing
Industrial fabrication workshops
Engineering and job work industries

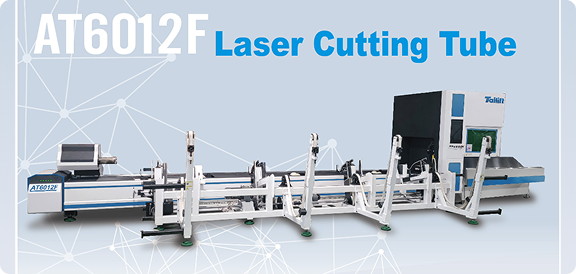

The AT6012F Tube Fiber Laser Cutting Machine is designed for high-speed and high-precision tube processing, delivering consistent cutting accuracy for a wide range of pipe applications and fabrication requirements.

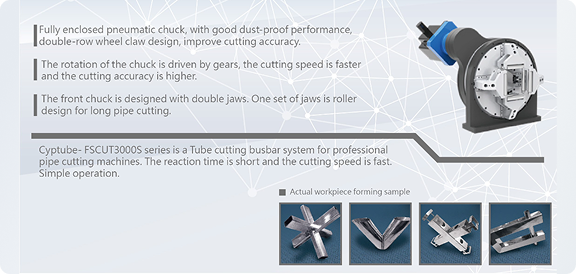

Equipped with a fully enclosed pneumatic chuck, the machine ensures stable clamping, excellent dust protection, and improved cutting precision during continuous operation.
Powered by the advanced FSCUT3000S bus control system, the machine provides smooth motion control, fast response, and user-friendly operation for enhanced productivity.
With acceleration up to 1G and maximum movement speed reaching 70 m/min, the system delivers faster processing, reduced cycle times, and efficient cutting performance.
The advanced servo motor system ensures synchronized machine movement, stable operation, and reliable high-precision cutting even at high processing speeds.
Designed with a short tail length of approximately 90 mm, the machine minimizes material wastage while improving production efficiency and cost-effectiveness.
| Specification | Option 1 |
|---|---|
| Model | AT6012F |
| Laser Power | 1.5KW β 6KW |
| Control System | FSCUT3000S Tube Cutting System |
| Chuck Type | Pneumatic Enclosed Chuck |
| Max Tube Weight | <80 kg |
| Cutting Capacity β Round Tube | Ξ¦15 β Ξ¦120 mm |
| Cutting Capacity β Square Tube | 15Γ15 β 85Γ85 mm |
| X/Y Axis Positioning Accuracy | Β±0.05 mm/m |
| Chuck Rotation Speed | High Speed Gear Driven |
| Loading Method | Manual / Semi-Automatic |
Everything you need to know about the A Series Fiber Laser Cutting Machine
The AT6012F Series is used for high speed and high precision cutting of tubes and pipes across industries such as furniture manufacturing, automotive components, fitness equipment, electrical conduits, and general fabrication. It is ideal for businesses looking for a compact and efficient tube laser cutting solution.
The AT6012F Series is designed for small to medium tube processing with high precision and stability. It supports:
The machine includes a stable long pipe support system, ensuring smooth and accurate cutting even for full length tubes.
Yes, the AT6012F is designed as a compact and cost efficient tube laser cutting machine, making it ideal for SMEs, job work units, and manufacturers looking to improve productivity without large space requirements.
The machine can efficiently process a wide range of materials including mild steel, stainless steel, aluminium, brass, and copper, making it suitable for diverse industrial applications.
Choosing the right laser power depends on your production requirements and cutting speed expectations:
Selecting the right power ensures better performance, smoother cuts, and improved productivity.
The AT6012F can process tubes weighing up to approximately 80 kg, ensuring stable and reliable cutting for standard industrial tube applications.
The machine offers high precision with positioning accuracy of Β±0.05 mm per meter, ensuring consistent and repeatable cutting quality even at high speeds.
The machine is equipped with a high speed motion system with acceleration up to 1G, axis speed up to 70 m per minute, and chuck rotation speed up to 150 rpm, enabling faster processing and reduced cycle time.
The fully enclosed pneumatic chuck provides strong and stable clamping, reduces vibration, improves cutting accuracy, and protects internal components from dust, ensuring longer machine life and consistent performance.
The machine uses the FSCUT3000S tube cutting system, which offers fast response, smooth motion control, and a user friendly interface, helping operators achieve high precision cutting with improved efficiency and ease of operation.
