Global Machines, Reliable Service.
Watch our product in action, and product images for better understanding
Dual functionality for sheet and tube cutting
Supports up to 6 meter tube processing
Compact design with space saving structure
High precision cutting for sheets and pipes
Integrated tube cutting attachment system
Stable machine structure for consistent performance
Efficient material utilization across applications
User friendly control and operation
Low maintenance and cost effective solution
Ideal for multi-purpose fabrication
Sheet metal and tube fabrication
Furniture and modular structure manufacturing
Automotive components and chassis parts
Fitness equipment manufacturing
Agricultural equipment fabrication
Electrical panels and pipe structures
Industrial fabrication workshops
Engineering and job work industries

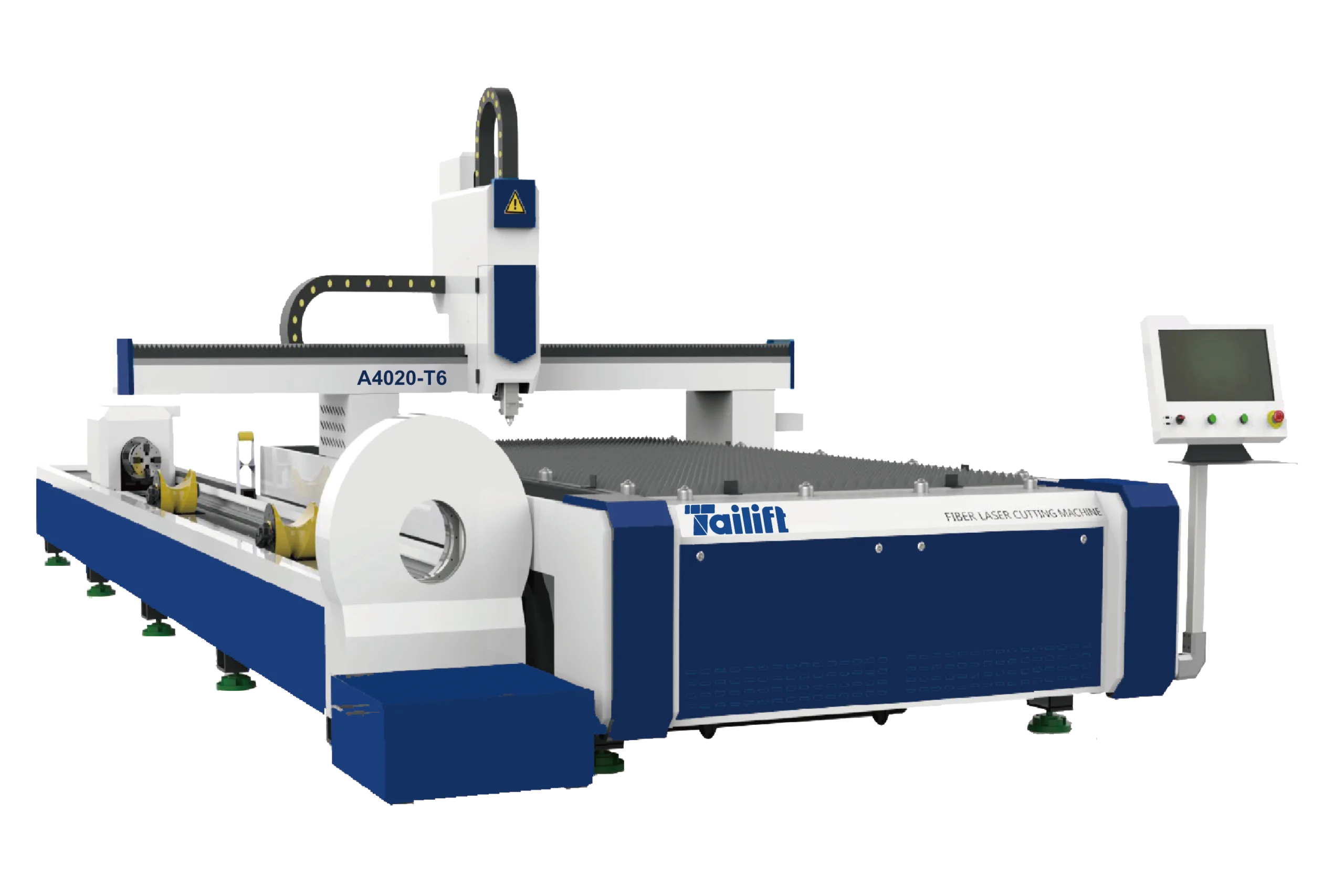

The A-T6 combines sheet metal and tube cutting functions into one compact system, allowing efficient processing of both flat sheets and pipes without requiring separate machines.
The machine supports tube lengths up to 6000 mm, making it suitable for a wide range of pipe, tube, and structural fabrication applications.
Designed for workshops with limited floor space, the machine delivers maximum functionality within a compact and efficient footprint.
With positioning accuracy up to Β±0.03 mm/m, the machine ensures highly accurate and consistent cutting results for both sheet and tube applications.
Featuring a tail length of approximately 90 mm, the system minimizes material wastage while improving overall cutting efficiency and productivity.
Built with a robust machine structure and smooth motion system, the machine ensures stable performance, reduced vibration, and long-term operational reliability.
| Specification | Option 1 | Option 2 | Option 3 |
|---|---|---|---|
| Model | A3016-T6 | A4020-T6 | A6020-T6 |
| Laser Power | 1.5KW β 6KW | 1.5KW β 6KW | 1.5KW β 6KW |
| Sheet Cutting Range | 3000 Γ 1500 mm | 4000 Γ 2000 mm | 6000 Γ 2000 mm |
| Tube Length Capacity | Up to 6000 mm | Up to 6000 mm | Up to 6000 mm |
| Round Tube Capacity | Ξ¦15 β Ξ¦220 mm | Ξ¦15 β Ξ¦220 mm | Ξ¦15 β Ξ¦220 mm |
| Square Tube Capacity | 20 Γ 20 mm to 155 Γ 155 mm | 20 Γ 20 mm to 155 Γ 155 mm | 20 Γ 20 mm to 155 Γ 155 mm |
| Positioning Accuracy | Β±0.03 mm/m | Β±0.03 mm/m | Β±0.03 mm/m |
| Tail Length (Scrap) | 90 mm | 90 mm | 90 mm |
| Machine Type | Sheet + Tube Combination | Sheet + Tube Combination | Sheet + Tube Combination |
| Chuck Type | Pneumatic Chuck | Pneumatic Chuck | Pneumatic Chuck |
Everything you need to know about the A Series Fiber Laser Cutting Machine
The A-T6 Series is a dual-purpose fiber laser cutting machine designed for both sheet metal and tube cutting, making it ideal for fabrication units handling mixed applications in a single setup.
Yes, the A-T6 Series combines sheet cutting and tube cutting functionality in one compact system, eliminating the need for separate machines and reducing overall investment cost.
The machine supports tube processing up to 6 meters (6000 mm), making it suitable for most industrial pipe and structural applications.
The machine supports round tubes from Ξ¦15 mm to Ξ¦220 mm and square tubes from 20 Γ 20 mm to 155 Γ 155 mm, covering a wide range of fabrication needs.
The A-T6 Series supports 1.5 kW to 6 kW fiber laser power, making it suitable for precision cutting and medium-duty fabrication applications.
The A-T6 Series is designed for flexible sheet and tube processing rather than heavy-duty thick plate cutting.
The machine maintains a low tail length of approximately 90 mm, helping reduce scrap and improve material utilization.
Yes, the compact design makes it ideal for workshops with limited space, while still offering full sheet and tube cutting capability.
It is ideal for furniture manufacturing, automotive components, fitness equipment, electrical panels, agricultural equipment, and general fabrication industries requiring both sheet and tube processing.
The A-T6 Series offers dual functionality, lower investment cost, space saving design, and operational flexibility, making it a smart choice for manufacturers looking to maximize productivity with a single machine.
Our comprehensive buying guide covers everything you need to know about 5-axis laser cutting machines, power selection, applications, and more.
To know more about the machine, send us an enquiry and we will get back to you.
Contact our team for detailed specifications, pricing, and consultation
